| Material | E/C-GLASS |
| Heat Resistant(℃/℉) | 960/1760 |
| Roll Weight(g/㎡ | oz/sq yd) | 390-3750 | 11.5 -110.6 |
| Application | 1. Industrial kiln, heating device, high-temperature pipeline lining. |
| 2. Thermal insulation for power boilers, gas turbines, | |
| thermoelectric, and nuclear power plants. | |
| 3. The lining of high-temperature and heating equipment in the chemical industry. | |
| 4. Fireproof and heat insulation of high-rise buildings. | |
| 5. Heat preservation device for high-end household appliances. | |
| 6. High-temperature filtration, etc. | |
| 7. Seam sealing, filling, and heat preservation (kiln cars, pipes, doors, etc.). | |
| 8. Raw materials for further production. |
| Temperature | Thermal Conductivity | |
| Metric(℃) | US（℉） | (W/m·k) |
| 20 | 68 | 0.03 |
| 100 | 212 | 0.037 |
| 200 | 392 | 0.048 |
| 300 | 572 | 0.058 |
| 400 | 752 | 0.076 |
| 500 | 932 | 0.094 |
| 600 | 1112 | 0.112 |
| Model | Thickness | Width | Density | Weight | Length | |||||
| Metric(mm) | US(inch) | Metric(mm) | US(inch) | Metric(kg/m3) | US(lb/ft3) | Metric(g/m2) | US(oz/sq yd) | Metric(mm) | US(inch) | |
| HKBDZ-3 | 3 | 0.12 | 1050 | 42 | 130 | 7.8 | 390 | 11.7 | 40 | 1.6 |
| HKBDZ-4 | 4 | 0.16 | 1050 | 42 | 130 | 7.8 | 520 | 15.6 | 40 | 1.6 |
| HKBDZ-5 | 5 | 0.2 | 1050 | 42 | 140 | 8.4 | 700 | 21 | 40 | 1.6 |
| HKBDZ-6 | 6 | 0.24 | 1050 | 42 | 140 | 8.4 | 840 | 25.2 | 30 | 1.2 |
| HKBDZ-8 | 8 | 0.32 | 1050 | 42 | 140 | 8.4 | 1120 | 33.6 | 20 | 0.8 |
| HKBDZ-10 | 10 | 0.4 | 1050 | 42 | 150 | 9 | 1500 | 45 | 20 | 0.8 |
| HKBDZ-12 | 12 | 0.48 | 1050 | 42 | 150 | 9 | 1800 | 54 | 20 | 0.8 |
| HKBDZ-15 | 15 | 0.6 | 1050 | 42 | 150 | 9 | 2400 | 72 | 15 | 0.6 |
| HKBDZ-20 | 20 | 0.8 | 1200 | 48 | 150 | 9 | 3000 | 90 | 10 | 0.4 |
| HKBDZ-25 | 25 | 1 | 1200 | 48 | 150 | 9 | 3750 | 112.5 | 10 | 0.4 |

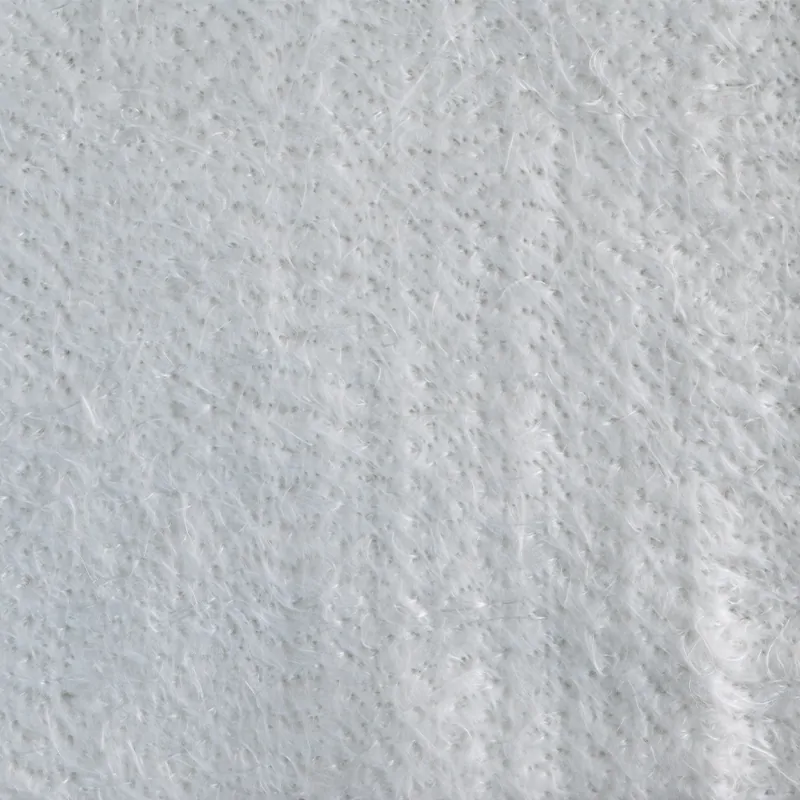

Heaterk Introducing the Silica Needle Mat, a high-performance thermal and electrical insulation product made from chopped strand silica fiber needle mat. With its superior thermal conductivity and high-temperature resistance, this high silica needle mat is an excellent choice for heat insulation in various industrial applications.
Made from 100% pure silica fiberglass, this silica mat has excellent thermal insulation properties, making it an ideal choice for applications requiring high-temperature resistance. Its unique fiber needle structure provides excellent insulation against heat transfer, ensuring your equipment remains safe and operational even in high-temperature environments.
This high silica needle mat is also highly durable and resistant to abrasion, making it an excellent choice for industrial applications where harsh environments are commonplace. Its high strength-to-weight ratio ensures it can withstand heavy loads and vibrations, ensuring long-lasting performance.
This knitted silica matt also provides exceptional electrical insulation, essential for applications where electrical safety is a concern. With its low thermal conductivity, this high silica needle mat offers excellent insulation against heat transfer, ensuring an optimal operational environment for your equipment's safety and performance.
Technical Parameters:
1. Used for heat preservation of various heat sources (coal, electricity, oil, gas), high-temperature equipment, and central air-conditioning pipelines.
2. Used in various heat insulation and fireproof materials.
3. Sealing, sound-absorbing, filtering, and insulating materials used in particular places.
4. Used for heat preservation of various heat transfer and heat storage devices.
5. It is used for sound insulation, heat insulation, and heat resistance of vehicles, ships, airplanes, and other parts.
6. For the sound insulation of the inner core of automobile and motorcycle mufflers as well as reduction of the engine noise.
7. Colored steel plates and interlayers of wood-structured houses are insulated from heat and moisture.
8. Thermal and chemical pipeline insulation; its thermal insulation effect is better than that of general thermal insulation materials.
9. Heat insulation and heat preservation of electrical wall panels in household industries such as air conditioners, refrigerators, microwave ovens, and dishwashers.
10. Other occasions require heat preservation, heat insulation, fire prevention, sound absorption, and insulation.
The Silica Needle Mat is an exceptional high-performance thermal and electrical insulation product that meets the needs of various industrial applications. Its unique fiber needle structure, high-temperature resistance, and low thermal conductivity make it an ideal choice for essential heat and electrical insulation applications. With its durability, strength, and resistance to abrasion, this high silica needle mat is the perfect choice for demanding applications with critical reliability and performance.
Learn More About Heaterk Fiberglass Needle Felt Products > >
