Acrylic Coated Fiberglass Fabric

Item No.: 00101
Thickness: 0.2 - 1.15 mm
Gram Weight: 140 - 1020 gsm
Description Data Sheet Application Certification Review
Description

- Acrylic Coated Fiberglass Fabric -

Acrylic fiberglass-coated fabric is a fiberglass base cloth coated with acrylic on the surface. The acrylic fiberglass fabric is smooth, soft, and compact. The glass fiber surface is covered with acrylic acid and other unique sizing materials to fix the lines, enhance the wear resistance of the cloth surface, and significantly improve the glass's oil solvent and high-temperature resistance fiber cloth. This fabric is ideal for fire blankets, welding curtains, and protection covers.

- Fabric Features -

Flame Retardancy

Excellent Flame Retardancy



Although the maximum temperature resistance of the acrylic coating can only reach 150 degrees Celsius, the base fabric can still work at 550 degrees Celsius, which is sufficient for general spark protection use.


Very High-Cost Performance

Very High-Cost Performance



Although the coating of acrylic fabric is not as good as silicone-coated fabric or high-silica glass fiber fabric in long-term high-temperature environments, its price is only 1/2 of that of silicone-coated glass fiber fabric, so it is more suitable for long-term mass production and consumables.

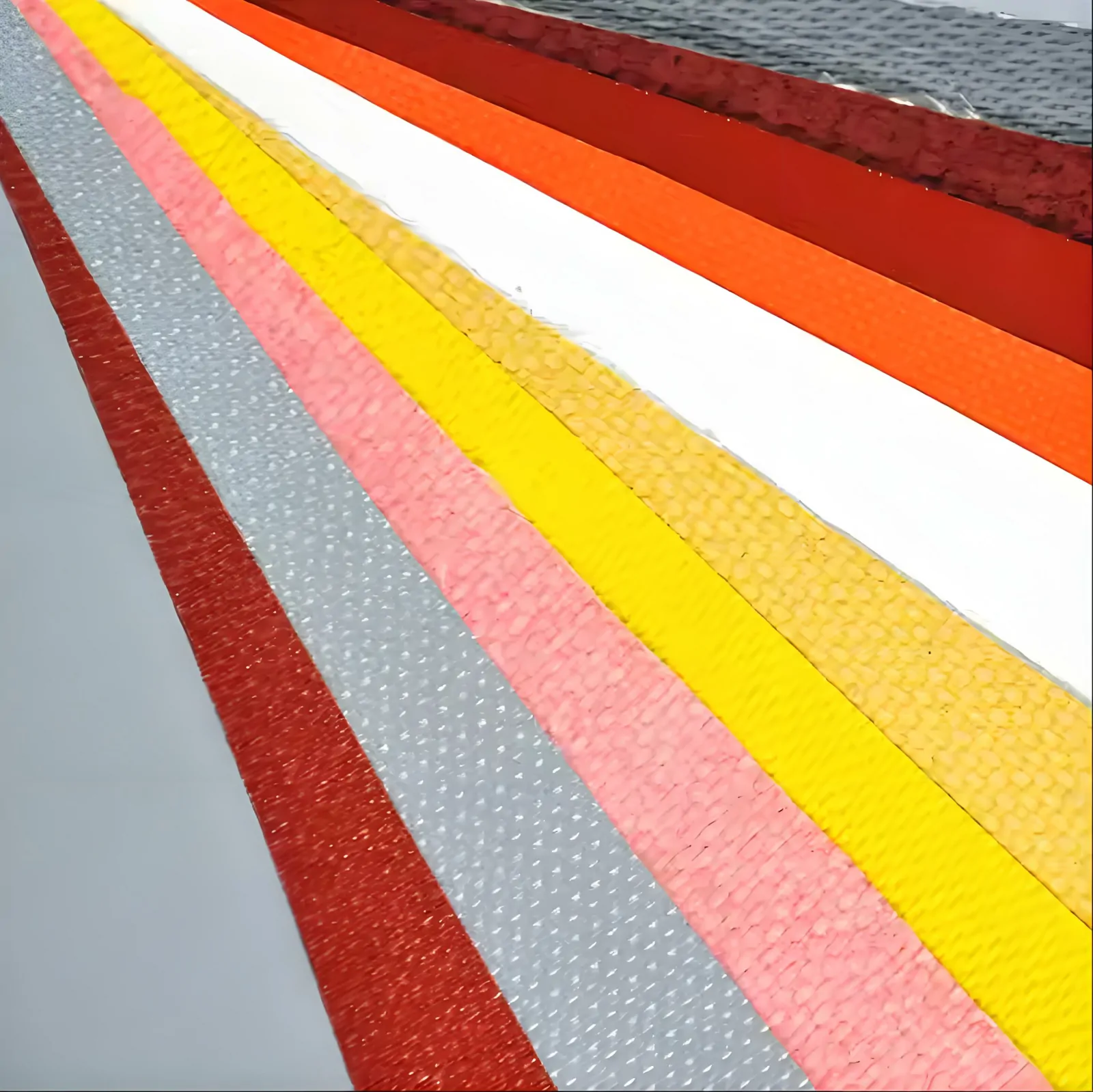

Multiple Colors to Choose From

Multiple Colors to Choose From



Acrylic has a lot of colors. In welding engineering, distinguishing the process by different colors is often necessary. Heaterk can provide more than 15 unique color options and can be customized to match your desired preferences.


Abrasion Resistance

Abrasion Resistance



The fixed weave acrylic fabric can effectively improve the fabric's abrasion resistance, and you can also choose a higher thickness to suit heavy industry use.



Data Sheet

- Performance Parameters -

Material Acrylic Coating + Glass Fiber Test Method Aluminum foil tape PDF
Temperature Resistance -18 °C to 149 °C
FED 191/5903.2
Weight 210 g/m² ± 10%(7.41 oz/sy ± 10%)
ASTM-D-3776
Thickness 0.2 mm ± 0.002 mm(0.0078") ASTM-D-1777
Color Blue -

- Specification -

Specification Gram Weight Thickness Color
(g/m2 (mm)
HK200P-AC210-3002 205 0.2 White
HK430C-AC210-3003 437 0.4 White
HK600C-AC211-3004 610 0.6 Green
HK800C-AC212-3006 810 0.75 Blue
THK816P-AC236-3009 966 1.15 Black
THK680P-AC236-3012 816 0.8 Yellow
HK430C-AC235-3013 580 0.45 Black
THK884P-AC236-3022 1020 1 Yellow
HK400-AC224-3026 500 0.4 Red
HK130P-AC215-3031 140 0.15 Black
Application

Application

  • Pipes, fire doors, smoke barriers,
  • Boilers, blowers, incinerators,
  • Air conditioning dust removal, flue gas desulfurization device,
  • Other budget-constrained high-temperature flame retardant environments with high-volume usage

Industry

  • Aerospace
  • Weapon ship
  • Steel Machinery
  • Metallurgy, thermal power, and nuclear power
  • Paper, cement
  • Industry and mining, chemical industry
  • Petroleum development, grinding wheel
Certification
Convective Heat ISO 9151 | B1
Radiant Heat ISO 6942 | C1
Flame Propagation ISO 15025 | A1 - A2
Electrical Arch EN 61482 | CLASS 1
Contact Heat ISO 12127 | F1
Antiestatic EN 1149-3
